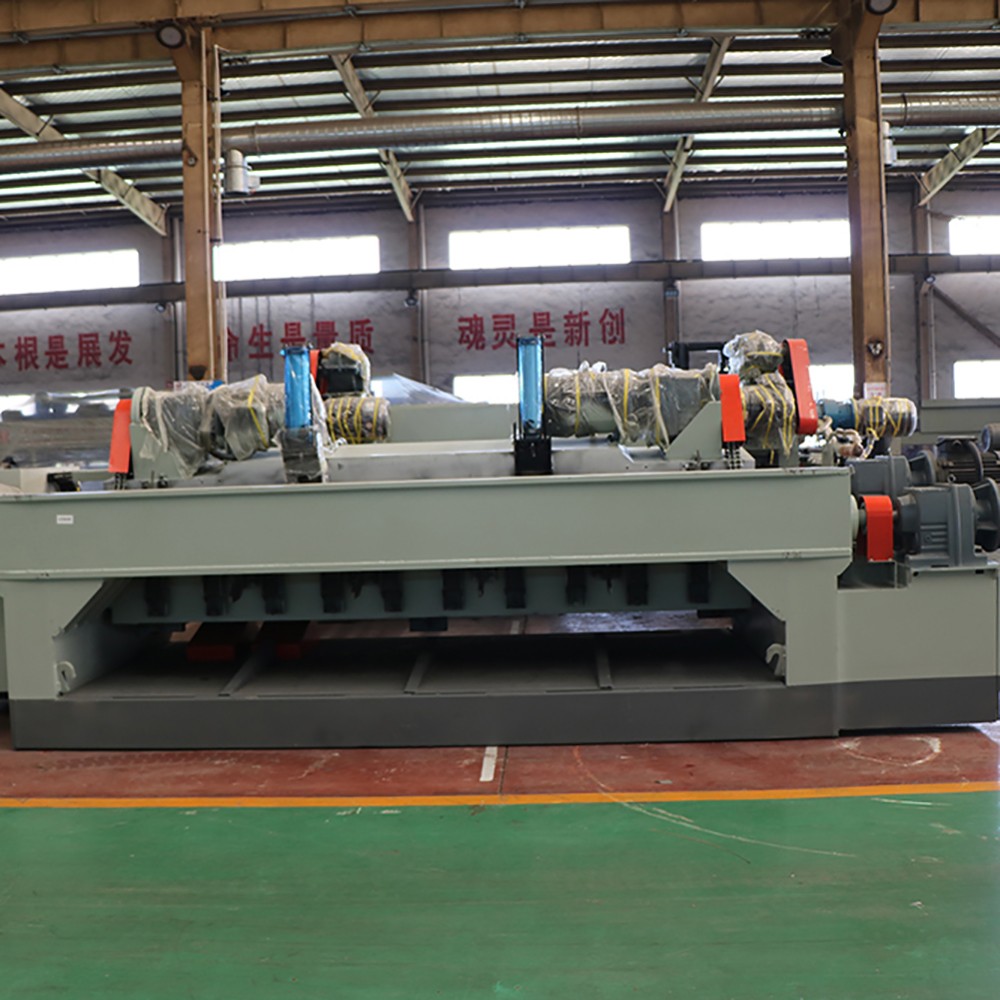

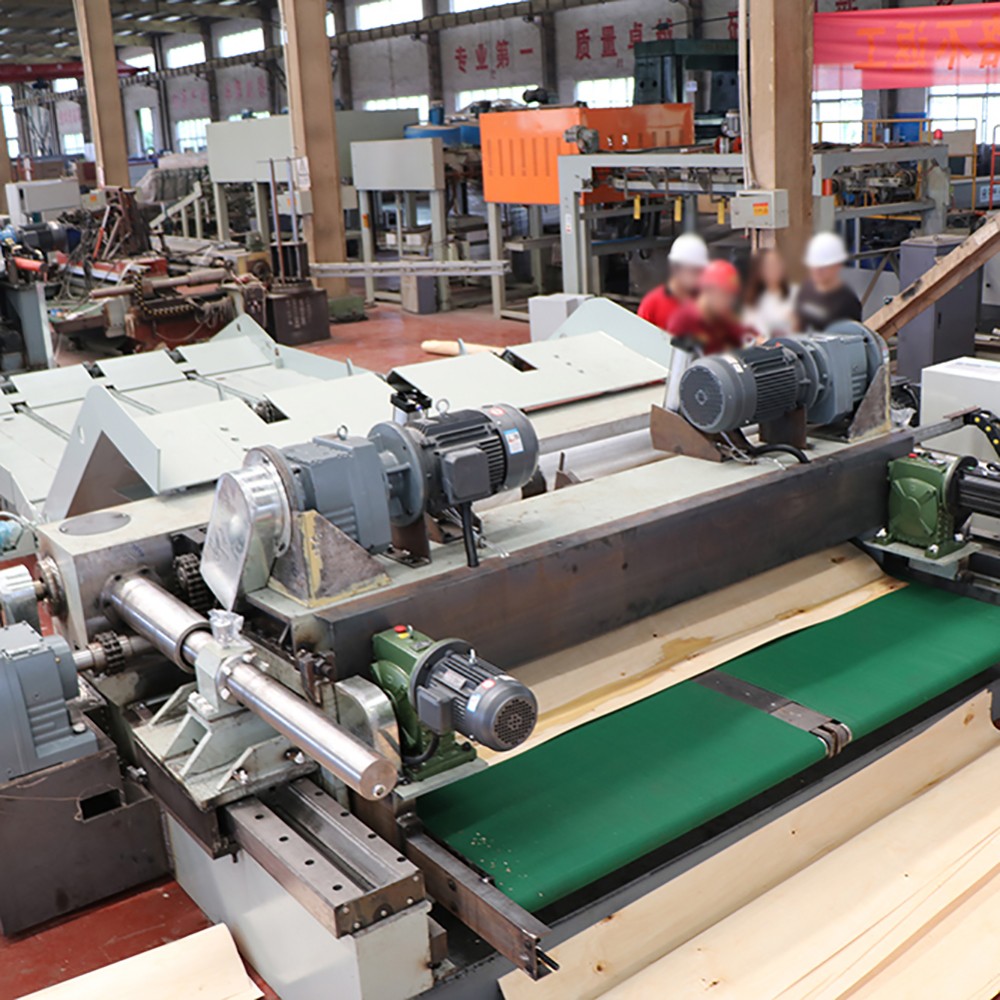

name: 2700mm veneer peeling machine
date: 2022-03-28 18:05:32
view: 139
about:

　 WHO WE ARE GTCO Machinery company is located in Xicheng New District, Linyi City--- a commercial and logistics city. After more than 20 years' continuous innovation and development , Machinery has become an outstandi...

86 15954388399

gtco@gtcomachinery.com

DETAIL

Parameter
Model	GTPM150mm	GTPM270	GTPM360
Roller Length	1300mm	2600mm	3300mm
Max Processing Log Diameter	Φ550mm	Φ600	Φ700
Min Residual wood Diameter	Φ32mm	Φ32mm	Φ30mm
Single Roller Diameter	Φ100	Φ125	Φ125
Double Roller Diameter	Φ125	Φ125	Φ125
Working thickness Range	1.0mm to 4.0mm	1.0 to 4.0mm	1.0 to 4.0mm
Peeler Blade size	15016013mm	270018016mm	360018016mm
Main Line Speed	0-80m/min ,adjustable	0-80m/min ,adjustable	0-80m/min ,adjustable
Total Power	45.4KW	60KW	86.5KW
Overall Size(LWH)	4500* 2250*1450mm	5800* 2250*1650mm	650022501850mm
Weight (KGS)	About 6800KG	About 9000KGS	About 13000KGS
